Placecall

Dials a new outbound phone call.

The Placecall action is reserved for outbound calls that need their own script processing, such as spawning pre-recorded calls or prompts.
- For example, you can inform the call center manager that ports are nearing max, or you could spawn a survey call, and so on.
The Transfer action transfers an existing call to an alternate phone number.
- Transferred calls remain in the CXone platform and the call progress continues to be monitored and recorded. On transfer, the call begins consuming two ports.
The Blindxfer action transfers an existing call to an alternate phone number and the call exits the CXone platform.
- Call progress and recordings are no longer monitored and the port used for that call is freed.

Supported Script Types

Phone

Properties

Property	Details
PhoneNumber	The phone number being dialed. You can either hard code a specific number in this field or use a variable to reference other numbers.
CallerID	The phone number that will display as the Caller ID for the contact when the call is made.
Timeout	The number of seconds the system will wait for an answer before the NoAnswer branch is triggered. A timeout starts when a ringing indication is received from the called party.
DetectionType	Allows you to specify whether the outbound call script should attempt to distinguish a live answer and an answering machine. Select NONE if there is no need to distinguish between a live person and an answering machine. Select NOTIFYOFMACHINEASAP if you do not plan to leave messages on answering machines and want the call to disconnect. Select NOTIFYOFMESSAGEEND if you plan to leave messages on answering machines. When you set this value to anything other than NONE, the script uses the Answering Machine Detection (AMD) feature. AMD holds PlaceCall result responses for 7 seconds. In certain scenarios, this can result in lack of audio during the detection window.
NoVoiceTimeout	The number of seconds that silence on the line will be accepted before the script follows the NoVoice branch.
VoiceMinimum	The number of seconds a sound on the line must be sustained to avoid triggering the NoVoice branch.
MaxLiveVoice	The number of seconds in which a voice answering a call may speak before it is determined to be an answering machine.
LiveSilence	The number of seconds of silence required after a voice is detected to trigger a LivePerson branch. Set this property only if DetectionType is set to NOTIFYOFMESSAGEEND.
MaxMachine	The number of seconds in which an answering machine message can continue without finishing before the MachineTimeout branch is taken.
MachineSilence	The number of seconds after the system determines that an answering machine message has finished before the AnswerMachine branch is taken.
LinkContactID	Causes the new outbound call to be pre-linked to the call specified (allows the other party to hear ringback, busy, and so forth.)
SourceLegPersistent	Use this property with caution. Default is FALSE. When TRUE is selected, the called party is prevented from dropping the source leg An active piece of a call that connects between routers, gateways, or telephony devices. of the call when it hangs up.
NewLegPersistent	Use this property with caution. Default is FALSE. When TRUE is selected, the calling party is prevented from dropping the destination leg of the call when it hangs up.
Parameters	Sets number and value of parameters to send when calling another CXone phone number. Pass as NAME=VALUE pairs. Curly braces are supported. For example, FromID={contactID}. Maximum size limit is 100 characters.

Branches

Branch	Details
Default	Path taken unless the script meets a condition that requires it to take one of the other branches. It is also taken if the other branches are not defined.
Answer	Path taken if the call is answered or DetectionType is set to None.
NoAnswer	Path taken when the destination party does not answer before or within seconds set in the Timeout property. The call may be terminated with the Hangup action.
Busy	Path taken if the call results in a busy signal.
Error	Path taken when the action fails to execute properly.
InvalidNumber	Path taken if the phone number is invalid, with an incorrect number format or other error.
LivePerson	Path taken if a live person answers the call and the DetectionType property is not set to "None".
NoVoice	Path taken if the call is answered but no voice is heard for the specified amount of time.
AnswerMachine	Path taken if an answering machine picks up the call.
Fax	Path taken when a fax machine is detected.
MachineTimeout	Path taken if an answering machine is detected and DetectionType is set to NOTIFY OF MACHINE ASAP or NOTIFY OF MESSAGE END.

Tips & Tricks

This action can be configured to differentiate between a live answer and an answering machine/fax machine.
Placecall is reserved for outbound calls that need their own script processing. Once the destination party answers, the script may behave like any other inbound script.
If the outbound call fails due to any of the failure branches (NoAnswer, Busy, InvalidNumber, or Error), it is required that the script execute the Hangup action (use the End action for Error branch conditions) to terminate the script. Otherwise, the script will remain in CXone as a non-terminated script.

Phone Script Example Using Placecall

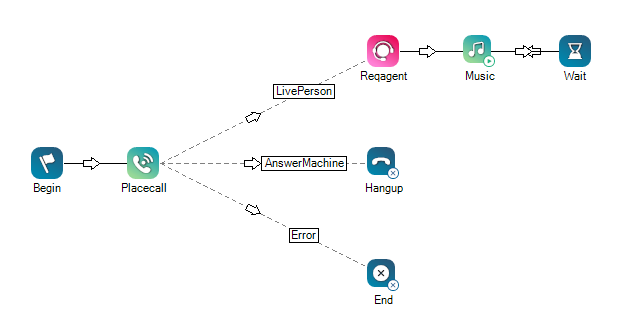

The script illustrated below uses the Placecall action to place an outbound call. If an error occurs, the call is not placed and the script ends with the End action. However, after the call is placed, if an answering machine picks up, the system uses Hangup to terminate the call. If a live person picks up, an agent with a designated ACD Skill Used to automate delivery of interactions based on agent skills, abilities, and knowledge is requested.
